BLOWER MOTOR

TYPE Single Shaft, Single Speed SHAFT SIZE 5/16" SHAFT LENGTH 1 7/8" MOTOR DIAMETER 3" MOTOR LENGTH 4" OVERALL LENGTH 6 1/4" ROTATION Clockwise NUMBER OF WIRES 2 VOLTAGE 12 STUD SPAN 2 5/16"

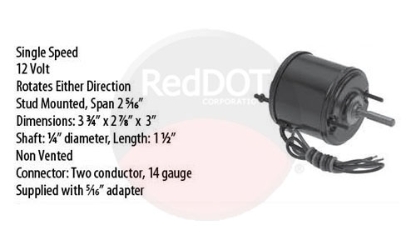

Blower Motor Volts: 12V Mount Type: Stud, Span 2 5/16" Overall Length: 3 3/4" Motor Length: 2 7/8" Motor Diameter: 3" Rotation: Clockwise / Counter Clockwise Shaft Type: Single (1/4" dia) Shaft Length: 1 1/2" Speed(s): SingleConnector: Two conductor, 14 gauge Supplied with 5/16" adapter

Volts: 24V Length: 3.62 Diameter: 1/4” Lead Wire: 3 wires Motor Diameter: 3 Motor Length: 2.75Rotation: CW Shaft Length: .62SPD: 2 Stud Span: 2.31

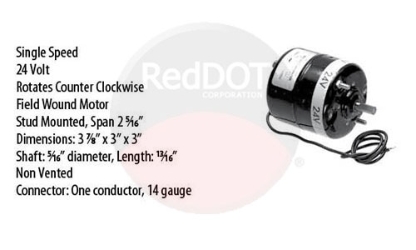

Overall length: 3 7⁄8 Motor length: 3 Shaft length: 13⁄16 Shaft diameter: 5⁄16 Motor diameter: 3 Speed: 1 Shaft rotation: Rotates Counter Clockwise Type: Field Wound Motor Mount: Stud, span 2 5⁄16 Voltage: 24 Volt Vent: Non Vented Connector: One conductor, 14 gauge

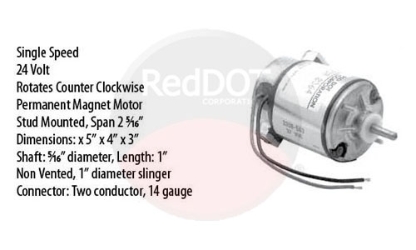

Blower Mtr, single, ccw,24v Volts: 24V Length: 5″ (OA Body) Wire Type: 2 wires Motor Diameter: 3″ Motor Length: 4″ Mount Type: Stud OEM Number: 73R0364 Product Name: Blower Motor Rotation: CCW Shaft Length: 1″ Shaft Type: Single (5/16″ dia) Speed(s): 1 Mounting Stud Distance: 2.31″

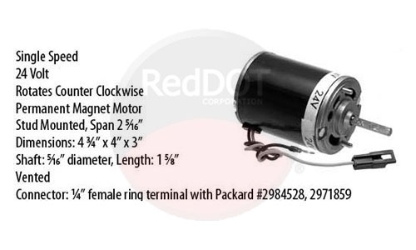

SHAFT LENGTH 1 5/8" MOTOR LENGTH 4" NUMBER OF WIRES 2 STUD SPAN 2 5/16" TYPE Single Shaft, Single Speed OVERALL LENGTH 6 3/8" VOLTAGE 24 SHAFT SIZE 5/16" OVERALL DIAMETER 3" ROTATION Counter Clockwise

TYPE Single Shaft SHAFT SIZE 5/16" SHAFT LENGTH 1" MOTOR LENGTH 4" OVERALL LENGTH 5 29/32" OVERALL DIAMETER 3" ROTATION Clockwise NUMBER OF WIRES 2 VOLTAGE 24 NUMBER OF SPEEDS Single STUD SPAN 2 5/16"

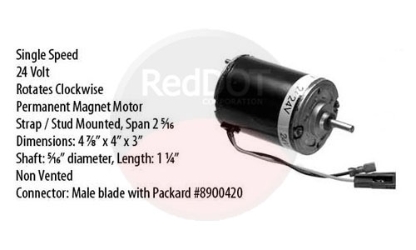

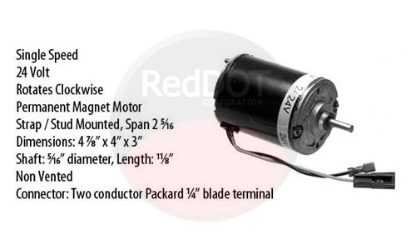

Blower motorVoltage: 24V Overall Length [A]: 4 7⁄8 Motor Length [B]: 4 Shaft Length [C]: 1 1⁄4 Shaft Diameter: 5⁄16 Motor Diameter [D]: 3 Speed: 1 Shaft Rotation: CW - Clockwise Type: PM - Permanent Magnet Motor Mount: Strap/Stud 2 5⁄16 Vent: NV - Non Vented

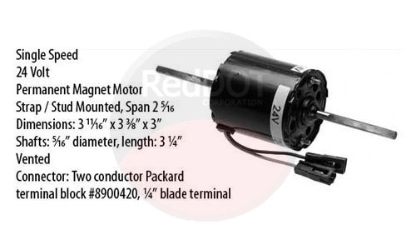

Blower Motor Volts: 24V Overall Length: 3 11/16" Motor Length: 3 3/8" Motor Diameter: 3" Mount Type: Strap/Stud Mounted, Span 2 5/16" Rotation: Clockwise / Counter Clockwise Shaft Type: Double (5/16" dia) Shaft Length: 3 1/4" Speed(s): SinglePermanent Magnet Motor Connector: Two conductor Packard terminal block #8900420, 1/4" blade terminal

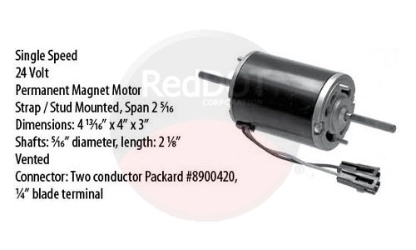

Blower motor Overall length: 4 13⁄16 Motor length: 4 Shaft length: 2 1⁄8 Shaft diameter: 5⁄16 Motor diameter: 3 Speed: 1 Shaft rotation: Clockwise / Counter Clockwise Type: PM Permanent Magnet Motor Mount: Strap/Stud 2 5⁄16 Voltage: 24 Volt
